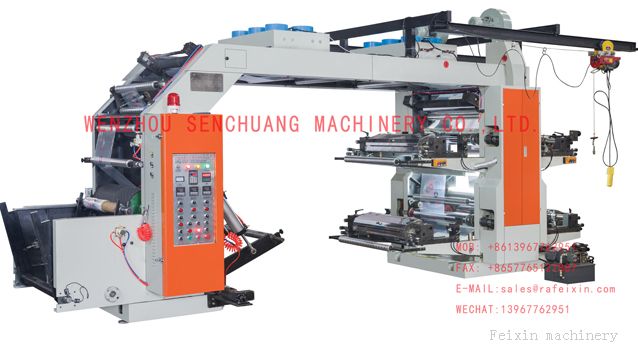

Four Colour Middle High Speed Flexo Printing Machine

Four Colour Middle High Speed Flexo Printing Machine

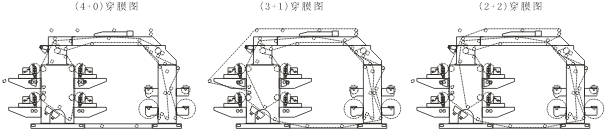

Principle picture
Application:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Technical Data:
Type YT-4600 YT-4800 AYT-41000
Max.Effective Printing Width 560mm 760mm 960mm
Max.Web Width 600mm 800mm 1000mm
Max.Printing Speed 50m/min 50m/min 50m/min
Max.Mechanical Speed 60 m/min 60 m/min 60 m/min
Max.Diameter of Roll Material ф560mm ф560mm ф560mm
Internal Diameter of Roll Core ф76mm ф76mm ф76mm
Rang of Repeat Printing Length 191-914mm 191-914mm 191-914mm
Accuracy of Registration ≤0.5mm ≤0.5mm ≤0.5mm
Plate Thickness(Bothside adhesive included) 2.38mm 2.38mm 2.38mm
Heating Power 7Kw 10.5Kw 14Kw
Total Power 11.5Kw 15Kw 18.5Kw
Weight of Machine 3000kg 3500kg 4000kg
Overall Dimension L4300×W1700×H2500mm L4300×W1900×H2500mm L4300×W2100×H2500mm

Performance and Features:

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops. 6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.
